KETJENBLACK Highly Electro-Conductive Carbon Black
What is KETJENBLACK?
KETJENBLACK is a unique electro-conductive carbon black that has received favorable evaluations for its superior performance and stability of quality. Mixed with plastic, rubber or other materials, KETJENBLACK has garnered high marks for providing the same level of electro-conductivity with a lower loading quantity as conventional carbon black.
KETJENBLACK Features
- Same level of electro-conductivity as conventional carbon black but with 1/2 to 1/3 of the loading quantity
- Effective at a lower loading quantity, has minimal effect on the physical properties of base resins or paint
- Minimal reduction in electro-conductivity when mixed with other materials
Grades and Main Applications
| Packing (Net: Kg) | Applications | ||
|---|---|---|---|
| KETJENBLACK EC300J | Granule | 10kg PE bag | Electro-conductive fillers used in resin compounds, electro-conductive battery materials, paint, colorant, toner |
| CARBON ECP | Powder | 4kg PE bag | |
| KETJENBLACK EC600JD | Granule | 8kg PE bag | |
| CARBON ECP600JD | Powder | 4kg PE bag | |
KETJENBLACK EC600JD is a high-performance product that displays the same level of performance at approximately 60% of the amount of KETJENBLACK EC300J.
Typical Characteristics
| KETJENBLACK EC300J | KETJENBLACK EC600JD | |
|---|---|---|
| DBP absorption (cm3/100g) | 360 (9g method) | 495 (15g method) |
| BET surface area (m2/g) | 800 | 1270 |
| Volatiles (%) | 0.5 | 0.7 |
| pH | 9.0 | 9.0 |
| Ash content (%) | 0.05 | 0.10 |
| Primary particle radius (nm) | 39.5 | 34.0 |
| Applications | Electro-conductive fillers used in resin compounds, battery materials, paint, colorant, toner | |
KETJENBLACK EC600JD is a high-performance product that displays the same level of performance at approximately 60% of the amount of KETJENBLACK EC300J.
5. Electro-Conductive Mechanism
| KETJENBLACK EC300J | KETJENBLACK EC600JD | Acetylene black | |
|---|---|---|---|
| Particle image |  |
 |
 |
| Void fraction (%) | 60 | 80 | － |
KETJENBLACK's pore structure allows it to perform in a manner that is superior to that of other types of carbon black.
Transmission electron microscopic images of KETJENBLACK EC
Carbon black's particle number and electro-conductivity
| KETJENBLACK | Acetylene black | |
|---|---|---|
| Dispersion state |  |
 |
| Composition | 10wt% polycarbonate | 10wt% polycarbonate |
| Electro-conductivity | 3.9Ω･cm | >1x108Ω･cm |
Examples of Electro-Conductive and Mechanical Properties

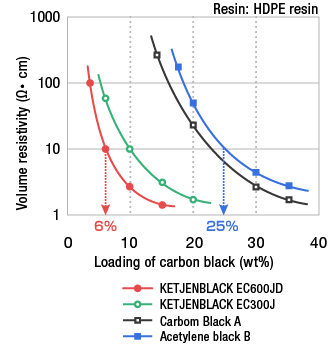

Loading of carbon black and the electro-conductivity of the compounds
KETJENBLACK is able to achieve the same resistivity value as a competitor’s oil-furnace carbon with 1/2 to 2/3 of the loading quantity. Consequently, KETJENBLACK is able to reduce its impact on base resin.
